VCB Accessories
0
Vacuum Circuit Breaker Wiring Connector Terminal Block
Multipurpose connector (Terminal block)
1.Product code: ZB-500
2.Cage clamp structure
3.JZ-58 secondary plug seat (improved type)
VCB Pin Plug Socket Secondary plug
1.Rated voltage: 380V A.C 220V D.C
2.Rated current: 16A A.C 10A D.C
3.Mechanical life: 2000times
4.Usage:This model is the self-designed product which has adopted advanced technology of ABB and Siemens, it could be used for GZS1, KYN28-12 and other model of HV switchgear (for VCB VS1,VD4) as secondary wire connection, its property is accordance with GB standard 3960-91(3-35kV A.C metal enclosed switching equipment)
Assembly Pole VI Housing for VCB
1.Insulation Tube And Cylinder/VI housing/contact arm bushing/cabinet cylinder insulated/electric cylinder insulated/Assembly pole
2.Rated current: 1250A,3150A.
3.Joyelectric International is a professional China insulation tube and cylinder manufacturer, distributor and supplier, welcome to order insulation tube and cylinder products from our factory and company.
Modular Operating Mechanism of Circuit Breaker
1.VSH Series operating mechanism is a kind of modularized operating mechanism of spring energy storage and suits vacuum circuit breaker with all voltage levels.
2.The operating mechanism integrates units such as closing unit, opening unit, auxiliary switch and indicating device, etc.
3.The front includes Closing/Opening button, manual energy charged handle, spring energy storage position indicator and C/O indicator, etc.
4.The performance of operating mechanism match design of vacuum interrupter and the mechanism decreases intermediate link and reduces energy consumption and noise, which make the performance of circuit breaker more reliable.

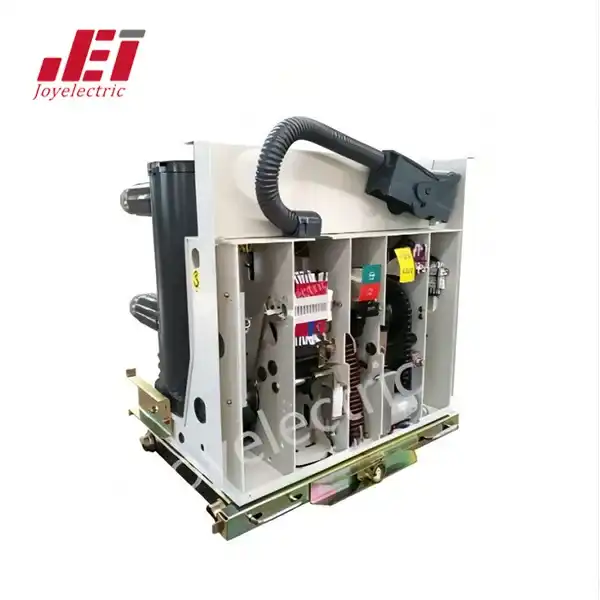

Vacuum Circuit Breaker Vs1 Operating Mechanism
1.The VS1 operating mechanism is used on our 12kV and 24kV VS1 type VCB.
2.Operation: Energy-storage Type.
3.Installation: Fixed and Withdrawable, Indoor.
Single Spring Operating Mechanism of VCB
1. Integrated, modular, miniaturized and lightweight;
2. High reliability, long life and more stable performance;
3. The parts are generalized, stocked and standardized;
4. High transmission efficiency and more reasonable design;
5. Independent property rights;
Plastic Front Plate of Vacuum Circuit Breaker
1.Material: Plastic
2.Service: Can Be Customized
3.Various Colors and Styles
Vacuum Circuit Breaker Operation Counter
1. Counting digits: 6 digits (106)
2. Max. indicating value: 999999;
3. Error of indicating value: 0;
4. Min. impulse width (on-off): DC 20/20 ms, AC 50/50 ms;
5. On-load factor (at 20ºC): 100%;

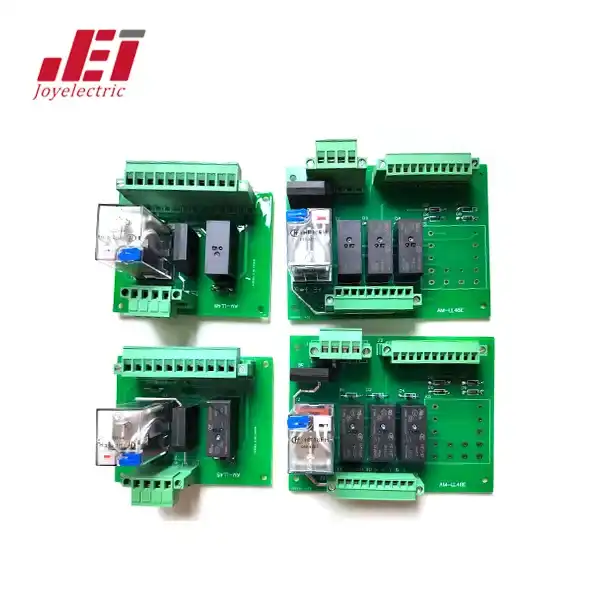

Circuit Board,Circuit Breaker Board for Vcb
1.Other accessories in VCB can also supplied.
2.OEM orders are welcome
3.Reasonable price and quick delivery
4.If you need the whole assembled, it also can be applicable.
Vacuum Circuit Breaker Terminal Cable Lug
1.Material: copper aluminum
2.High-quality,self-development
3.Independent innovation
4.Products meeter global market
Vacuum Circuit Breaker Motor
1.ZN63A-12 vacuum circuit breaker
2.VS1 electrically-operated mechanism
3.Number of Stator: Single-Phase
HDZ Series AC DC Motor
1.AC and DC dual-purpose energy storage motors for circuit breakers,
2.The voltage is 220V-380V. This product is suitable for energy storage motors such as vacuum circuit breakers.
3.Circuit breaker energy storage motor is mainly used for closing and opening.
4.There are two ways for circuit breakers to store energy: 1. Manual energy storage; 2. Motor energy storage
