We're professional RMU & GIS(SF6 & SF6 Free) Accessories manufacturers and suppliers in China, specialized in providing high quality RMU & GIS(SF6 & SF6 Free) Accessories with competitive price. To buy or OEM RMU & GIS(SF6 & SF6 Free) Accessories from our factory. For free sample, contact us now.
RMU & GIS(SF6 & SF6 Free) Accessories
0
Epoxy Resin Bushing Drawing for GIS
1.Application: Insulators
2.Type: Insulation Sleeve
3.Material: Epoxy Resin
4.Maximum Voltage: 10kv~40.5kv
5.Classification: Hybrid Insulation Materials
Sf6 Gas Insulation Measurement Unit Bushing
1.Application: Insulators
2.Type: Insulation Sleeve
3.Chemistry: Hybrid Insulation
4.Material: Epoxy Resin
5.Maximum Voltage: 10kv~40.5kv
Environmentally Friendly Gas Insulation Rum Bushing
1.Application: Environmentally Friendly Gas Insulation Rum
2.Type: Insulation Sleeve
3.Material: Epoxy Resin
4.Maximum Voltage: 10kv~40.5kv

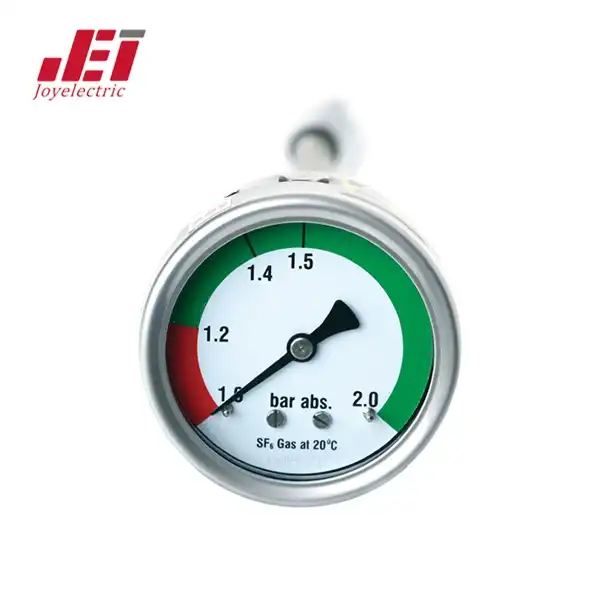

Sf6 Gas Pressure Gauge, Meter, Densitometer
1.Shell diameter:φ60mm
2.Shell Material:Stainless steel
3.Measurement Range:0-2bar(abs.)
4..Measurement accuracy:1.5grades(at 20ºC);2.5grades(at-30ºC to +60ºC)(gas state)
5.Working environment:Temperature-30ºC to +60ºC,Relative humidity≤95%RH
6.IP Grade:IP65
Sf6 Mamometer Gas Density Relay
1.The remote control SF6 gas density controller is a kind of mechanical-electrical integration meter, used for monitoring SF6 gas density of high voltage switchgear (such as high voltage vacuum circtuit breaker, transformer, totally enclosed combined electric equipment and insulated switchgear).
2.The meter consists of mechanical density controller and smart density transmitter.
3.It especially spllies to remote monitor of SF6 gas specification in smart grid system.
4.Stainless pressure sensing element ,movement and case.
5.Magnetic type dependable gold-plating contacts.

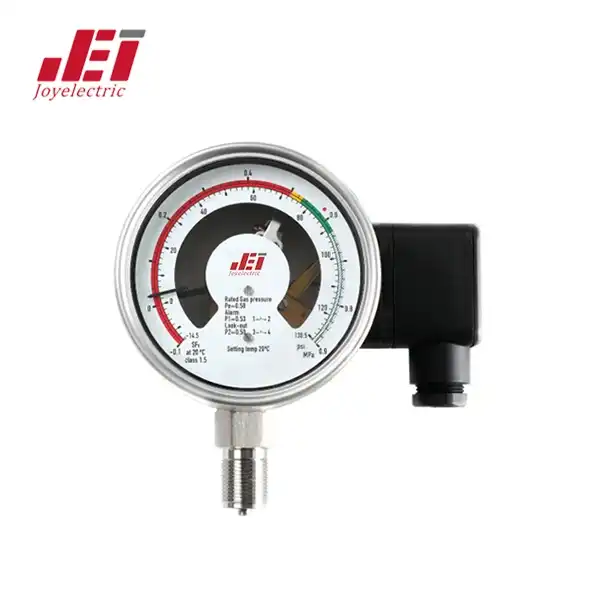

Monitor Sf6 Gas Analyzer Gas Density Relay
1.The gages are mainly used for monitoring high voltage electrical equipments which SF6 gas as insulation medium in power tranmission and distribution system.
2.Specification: -0.1Mpa~0.15Mpa, -0.1Mpa~0.06Mpa
3.Precision: Class 1.6, Class 2.5
4.Leakage rate: ≤1×10-9Pa.m3/s
Smart Sf6 Gas Density Transmission Controller
1.Warranty: 1years/Negotiable
2.Type: Remote
3.Accuracy: 1.5
4.Display: Pointer
5.Structure: Fluid Column Pressure Gauge.webp)

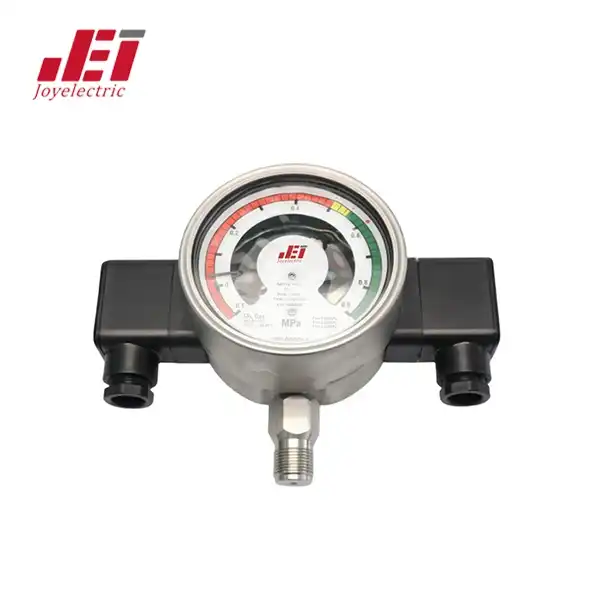

Sf6 Gas Density Manometer & Valve
1.It is used to control and monitor the density of SF6 gas in sealed containers.
2.It is used in SF6 high-voltage circuit breakers, medium-voltage switches, gas-insulated equipment (GIS), high-voltage cables, transformers and transformers.
3.It is suitable for strong vibration and outdoor harsh external conditions.
4.Sealing performance:≤1x10-8mbar./s(Helium test).
5.Electrocution capacity:AC 250V 3A DC 250V 0.2A.
Sf6 Check Valve Three-Way Valve
1.The SF6 density manometer can be verified or replaced without disassembling it.
2.One person can operate the manometer independently and no need to remove the screws. It is convenient, labor-saving and time-saving.
3.On-site personnel can test micro-water and perform gas replenishment conveniently.
4.Damage to the sealing surface and sealing ring caused by disassembly is avoided.
5.High-quality stainless steel material, never rust, esthetic appearance.
10kV Silicon Rubber Full Shrinkage Cable Accessories
1.Easy and quick installation without the need for any special tools.
2. No fire work, safe and reliable.
3.Keep constant radial pressure on cable body and “breath” together with cable
4.Good seal and water proof property.
5.Long-term reliable function.
20kV Silicon Rubber Full Shrinkage Cable Accessories
1.Easy and quick installation without the need for any special tools,
2.No fire work.
3.Safe and reliable.
4.keep constant radial pressure on cable body and “breath” together with cable.
5.Good seal and water proof property, long-term reliable function.
35kV Silicon Rubber Full Shrinkage Cable Accessories
1.Applicable to 21/35kV, 26/35kV single-core crosslink power cable connections.
2.Function as seal, insulation and transportation capacity dispersion.
3.Especially suitable for flammable and explosive environment like oil, chemical and mining conditions
