Since the static withstand voltage level of the vacuum interrupter at the rated opening distance is relatively high, the closing speed of the vacuum circuit breaker is significantly lower than the closing speed. In order to minimize the electrical wear of the contacts due to breakdown during the closing process, and to avoid contact welding, it is necessary to have a certain closing speed, but an excessively high closing speed not only increases the closing speed of the operating mechanism At the same time, the closing impact of the vacuum interrupter is increased, which greatly reduces its service life. Under normal circumstances, the closing speed of the 10kV vacuum circuit breaker is 0.4-0.7m/s, and it can be 0.8-1.2m/s if necessary.

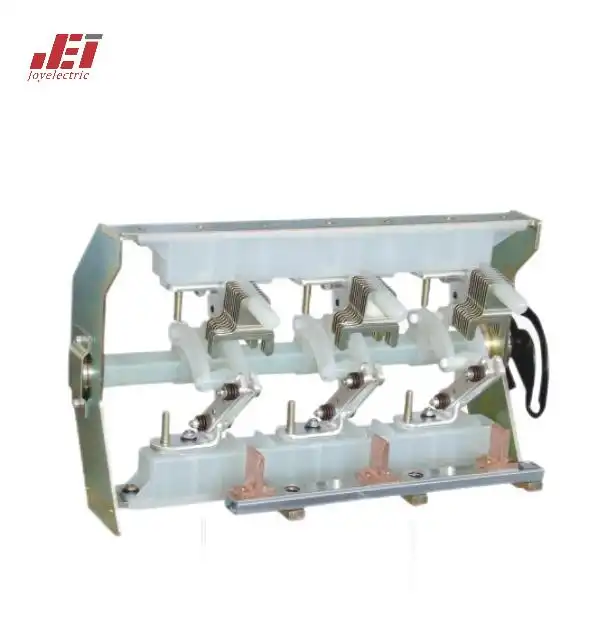

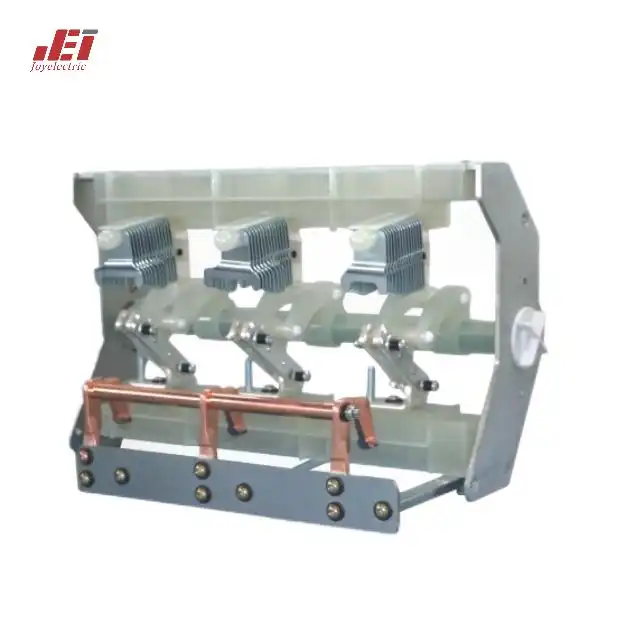

A non-load break switch, also known as a disconnect switch or isolator, is an electrical device designed to open or close a circuit when there is no significant current flowing. Unlike load break switches, which can interrupt the current under load conditions, non-load break switches are used to isolate electrical circuits during maintenance or repairs when the circuit is de-energized. These switches do not have arc extinguishing capabilities, making them unsuitable for breaking active electrical loads. Instead, they ensure safety by providing a visible and secure means of disconnecting power, commonly used in industrial and residential settings to isolate parts of the electrical system for safe maintenance and service operations.

When the vacuum circuit breaker is in the open state, the distance between the moving and static contacts of the vacuum interrupter be selected should consider factors including the voltage of the vacuum circuit breaker, operating conditions, the nature of the breaking current,contacts materials and strength withstand of voltage of the vacuum gap.Mainly depending on the rated voltage and the material of the contacts.

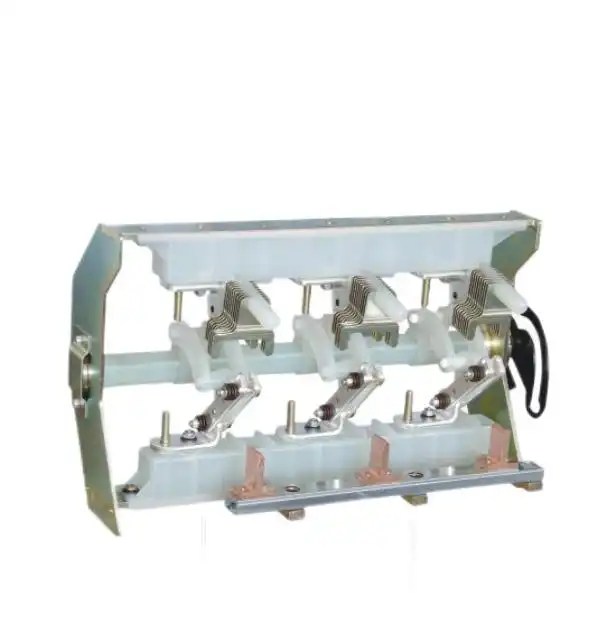

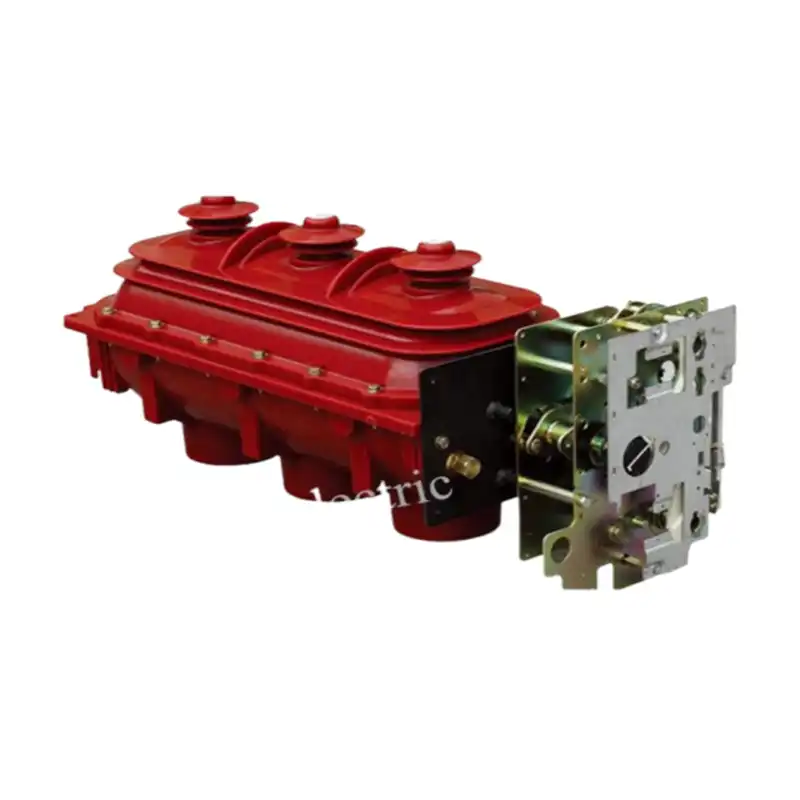

In the world of electrical engineering and power distribution, understanding the role and operation of a load break switch is crucial. Let's delve into this topic and explore its intricacies, answering some of the most pressing questions related to fault make load break switches.

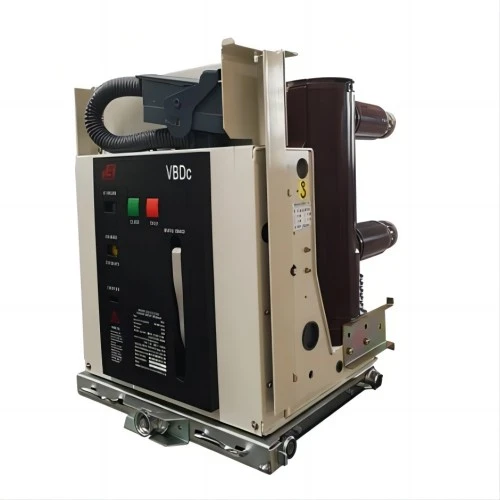

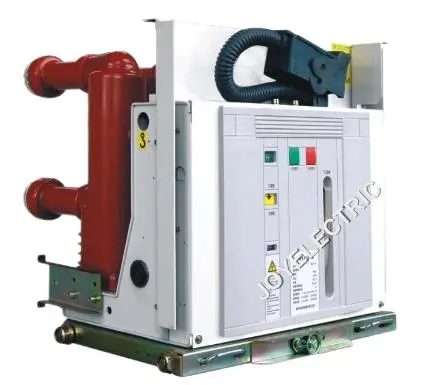

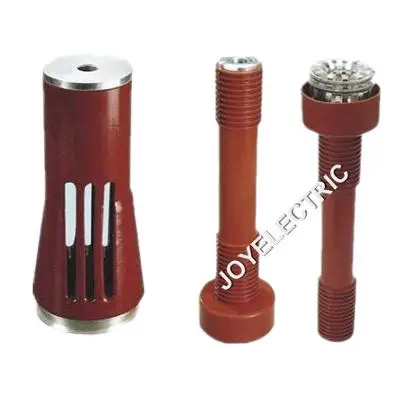

Only handcart type VS1 vacuum circuit breakers have contact arms . The contact arm is most easily overlooked when we maintain or repair it. Why is the contact arm easy to be overlooked in our maintenance? It is because the contact arm is not easily damaged, and it can usually be found when it is overheated or burned. By this time, it was found that the contact arm could no longer be used correctly. Therefore, the contact arm of the VS1 vacuum circuit breaker also needs maintenance and replacement.

Vertical break switches should not be opened under load. Unlike load break switches, which are designed to safely interrupt current flow under load conditions, vertical break switches lack the necessary arc extinguishing mechanisms. Attempting to open a vertical break switch while current is flowing can result in dangerous electrical arcing and potential damage to the equipment. These switches are primarily used for isolating electrical circuits when they are de-energized or carrying minimal current. For safe and effective load interruption, load break switches or circuit breakers should be used, as they are equipped to handle the electrical arcs generated during such operations.

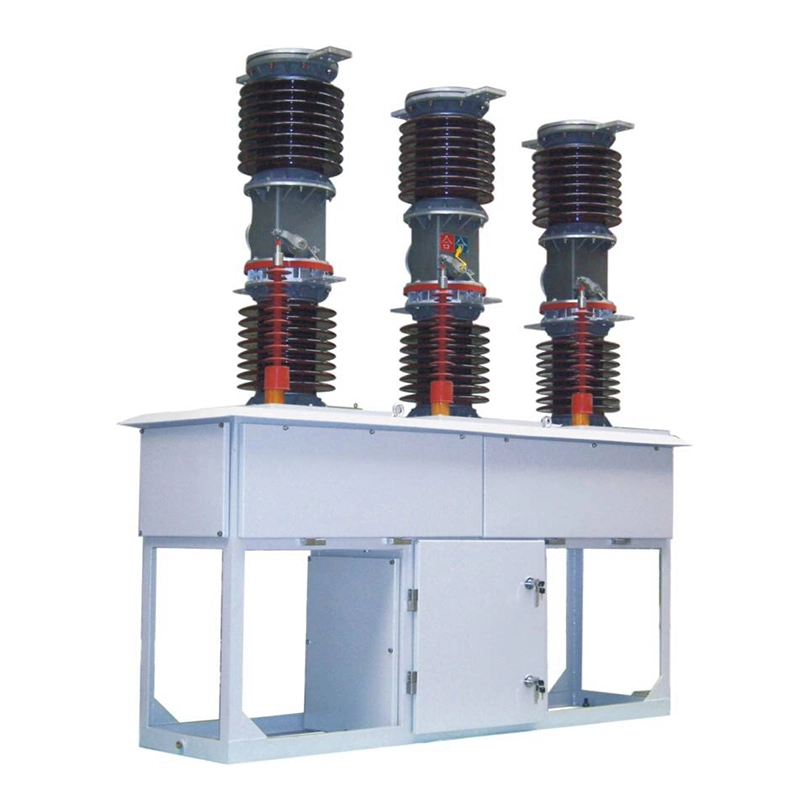

The structure of the ZW7-40.5 high voltage vacuum circuit breaker is a porcelain cylinder pillar type, the upper porcelain bottle is an arc extinguishing chamber porcelain bottle, a vacuum interrupter is installed inside, and the lower porcelain bottle is a pillar porcelain column. The three-phase porcelain bottles are installed in a structural box, and the arc extinguishing chamber has a movable end. It is connected with the output shaft of the spring mechanism through the crank arm and the absolute pull rod. The link connecting the spring mechanism and the circuit breaker is in a waterproof mechanism box. This product is mainly composed of vacuum interrupter, current transformer, transmission mechanism and spring operating mechanism.

In this comprehensive blog, we delve into the world of load break switches, focusing particularly on the A Bond Strands load break switch. Here are the key questions we'll explore:
